pytorch - fashion MNIST 분류 실습

Author
  • avatar
    Name
    yceffort

pytorch를 활용해서 옷 이미지를 구별하는 예제를 해봤었는데, 다시 한번 복습하는 차원에서 기본적인 기능으로 해보려고 한다.

1. 데이터셋 준비

import torch
from torchvision import datasets, transforms
import helper

# Define a transform to normalize the data
transform = transforms.Compose([transforms.ToTensor(),
                                transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))])
# Download and load the training data
trainset = datasets.FashionMNIST('~/.pytorch/F_MNIST_data/', download=True, train=True, transform=transform)
trainloader = torch.utils.data.DataLoader(trainset, batch_size=64, shuffle=True)

# Download and load the test data
testset = datasets.FashionMNIST('~/.pytorch/F_MNIST_data/', download=True, train=False, transform=transform)
testloader = torch.utils.data.DataLoader(testset, batch_size=64, shuffle=True)

먼저 데이터를 받기전에, 해당 데이터를 torch tensor로 바꾸고, Normalize할 수 있는 transform을 준비했다. 그리고 굳이 test set과 train set을 손수 나누지 않아도 저렇게 구별할 수 있게 해주었다. 그리고 각각의 데이터를 dataloader에 실어 넣었다.

이미지를 잠깐 살펴보기 위하여, imshow라는 메소드를 하나 만들었다.

def imshow(image, ax=None, title=None, normalize=True):
    """Imshow for Tensor."""
    if ax is None:
        fig, ax = plt.subplots()
    image = image.numpy().transpose((1, 2, 0))

    if normalize:
        mean = np.array([0.485, 0.456, 0.406])
        std = np.array([0.229, 0.224, 0.225])
        image = std * image + mean
        image = np.clip(image, 0, 1)

    ax.imshow(image)
    ax.spines['top'].set_visible(False)
    ax.spines['right'].set_visible(False)
    ax.spines['left'].set_visible(False)
    ax.spines['bottom'].set_visible(False)
    ax.tick_params(axis='both', length=0)
    ax.set_xticklabels('')
    ax.set_yticklabels('')

    return ax
image, label = next(iter(trainloader))
imshow(image[0,:]);
image-1

이게 옷인가 싶은 모양이지만 (..) 암튼 원피스겠지

2. 네트워크 만들기

만들어볼 네트워크는 아래와 같다.

  • input layer: 28 * 28 = 764
  • hidden layer: 2개, 각각 256, 128 개의 뉴런을 갖고 있음
  • output layer: 10개 (구별할 옷이 열 종류)
  • Adam Optimizer 와 NLLLoss 활용
class Classifier(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(784, 256)
        self.fc2 = nn.Linear(256, 128)
        self.fc3 = nn.Linear(128, 64)
        self.fc4 = nn.Linear(64, 10)

    def forward(self, x):
        x = x.view(x.shape[0], -1)
        x = F.relu(self.fc1(x))
        x = F.relu(self.fc2(x))
        x = F.relu(self.fc3(x))
        x = F.log_softmax(self.fc4(x), dim=1)

        return x

3. 네트워크 훈련하기

model = Classifier()
criterion = nn.NLLLoss()
optimizer = optim.Adam(model.parameters(), lr=0.003)

epochs = 20

for e in range(epochs):
    running_loss = 0
    for images, labels in trainloader:
        # 모델에서 훈련
        result = model(images)
        # 오차 계산
        loss = criterion(result, labels)

        # 초기화
        optimizer.zero_grad()
        # 역전파
        loss.backward()
        # 스텝
        optimizer.step()

        # 오차값을 총 오차에 더함
        running_loss += loss.item()
    else:
        print(f"Training loss: {running_loss/len(trainloader)}")
Training loss: 0.5118639363504168
Training loss: 0.3933752618714182
Training loss: 0.35750402640432183
Training loss: 0.33432440921219425
Training loss: 0.31787964060648416
Training loss: 0.3047505217606325
Training loss: 0.29022969397654663
Training loss: 0.28075202265337335
Training loss: 0.27226868114555314
Training loss: 0.26422357173966193
Training loss: 0.2592774396702679
Training loss: 0.25201891171636737
Training loss: 0.24683423794265877
Training loss: 0.24124097148540305
Training loss: 0.23825587014923852
Training loss: 0.2335602915538018
Training loss: 0.224308533554297
Training loss: 0.22240888378592824
Training loss: 0.21599145372634504
Training loss: 0.21485247272354707

4. 결과

%matplotlib inline
%config InlineBackend.figure_format = 'retina'

dataiter = iter(testloader)
images, labels = dataiter.next()
img = images[0]
img = img.resize_(1, 784)
ps = torch.exp(model(img))
view_classify(img.resize_(1, 28, 28), ps, version='Fashion')

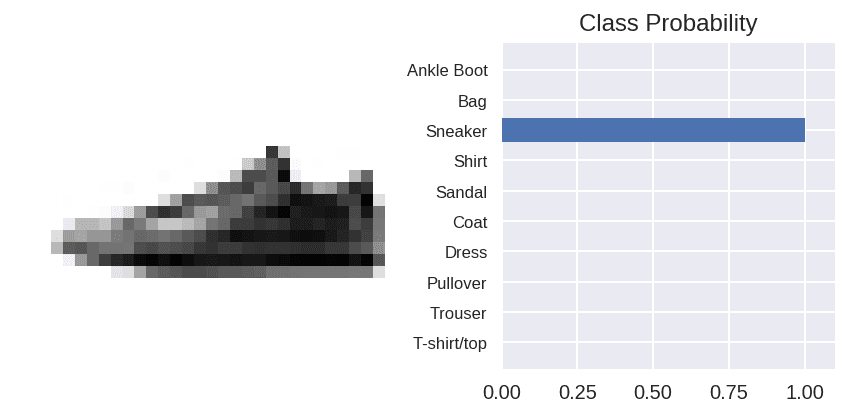

image-2

5. 총 accuracy 구하기

model = Classifier()
criterion = nn.NLLLoss()
optimizer = optim.Adam(model.parameters(), lr=0.003)

epochs = 30
steps = 0

train_losses, test_losses = [], []
for e in range(epochs):
    running_loss = 0
    for images, labels in trainloader:

        optimizer.zero_grad()

        log_ps = model(images)
        loss = criterion(log_ps, labels)
        loss.backward()
        optimizer.step()

        running_loss += loss.item()

    # for 문이 끝나면 실행한다.
    else:
        test_loss = 0
        accuracy = 0

        # Turn off gradients for validation, saves memory and computations
        # 자동 미분을 꺼서 pytorch가 쓸 떼 없는 짓을 안하게 한다. (어차피 test set에서 하는 작업이므로)
        with torch.no_grad():
            for images, labels in testloader:
                log_ps = model(images)
                test_loss += criterion(log_ps, labels)

                # 로그 확률에 지수 적용
                ps = torch.exp(log_ps)
                # topk는 k번째로 큰 숫자를 찾아내는 것이다.
                # dim=1 는 dimension을 의미한다.
                top_p, top_class = ps.topk(1, dim=1)
                # labels를 top_class와 똑같은 형태로 만든다음에, 얼마나 같은게 있는지 확인한다.
                equals = top_class == labels.view(*top_class.shape)
                # equals를 float으로 바꾸고 평균 정확도를 구한다.
                accuracy += torch.mean(equals.type(torch.FloatTensor))

        train_losses.append(running_loss/len(trainloader))
        test_losses.append(test_loss/len(testloader))

        print("Epoch: {}/{}.. ".format(e+1, epochs),
              "Training Loss: {:.3f}.. ".format(running_loss/len(trainloader)),
              "Test Loss: {:.3f}.. ".format(test_loss/len(testloader)),
              "Test Accuracy: {:.3f}".format(accuracy/len(testloader)))
Epoch: 1/30..  Training Loss: 0.521..  Test Loss: 0.461..  Test Accuracy: 0.833
Epoch: 2/30..  Training Loss: 0.395..  Test Loss: 0.429..  Test Accuracy: 0.839
Epoch: 3/30..  Training Loss: 0.357..  Test Loss: 0.393..  Test Accuracy: 0.862
Epoch: 4/30..  Training Loss: 0.334..  Test Loss: 0.388..  Test Accuracy: 0.863
Epoch: 5/30..  Training Loss: 0.318..  Test Loss: 0.380..  Test Accuracy: 0.867
Epoch: 6/30..  Training Loss: 0.303..  Test Loss: 0.367..  Test Accuracy: 0.871
Epoch: 7/30..  Training Loss: 0.292..  Test Loss: 0.386..  Test Accuracy: 0.869
Epoch: 8/30..  Training Loss: 0.285..  Test Loss: 0.371..  Test Accuracy: 0.879
Epoch: 9/30..  Training Loss: 0.274..  Test Loss: 0.357..  Test Accuracy: 0.878
Epoch: 10/30..  Training Loss: 0.274..  Test Loss: 0.377..  Test Accuracy: 0.876
Epoch: 11/30..  Training Loss: 0.261..  Test Loss: 0.369..  Test Accuracy: 0.871
Epoch: 12/30..  Training Loss: 0.255..  Test Loss: 0.357..  Test Accuracy: 0.881
Epoch: 13/30..  Training Loss: 0.251..  Test Loss: 0.385..  Test Accuracy: 0.873
Epoch: 14/30..  Training Loss: 0.248..  Test Loss: 0.405..  Test Accuracy: 0.875
Epoch: 15/30..  Training Loss: 0.240..  Test Loss: 0.368..  Test Accuracy: 0.882
Epoch: 16/30..  Training Loss: 0.232..  Test Loss: 0.364..  Test Accuracy: 0.883
Epoch: 17/30..  Training Loss: 0.230..  Test Loss: 0.413..  Test Accuracy: 0.872
Epoch: 18/30..  Training Loss: 0.229..  Test Loss: 0.384..  Test Accuracy: 0.878
Epoch: 19/30..  Training Loss: 0.221..  Test Loss: 0.376..  Test Accuracy: 0.883
Epoch: 20/30..  Training Loss: 0.217..  Test Loss: 0.443..  Test Accuracy: 0.867
Epoch: 21/30..  Training Loss: 0.217..  Test Loss: 0.382..  Test Accuracy: 0.880
Epoch: 22/30..  Training Loss: 0.212..  Test Loss: 0.403..  Test Accuracy: 0.880
Epoch: 23/30..  Training Loss: 0.209..  Test Loss: 0.403..  Test Accuracy: 0.879
Epoch: 24/30..  Training Loss: 0.209..  Test Loss: 0.398..  Test Accuracy: 0.881
Epoch: 25/30..  Training Loss: 0.202..  Test Loss: 0.406..  Test Accuracy: 0.880
Epoch: 26/30..  Training Loss: 0.200..  Test Loss: 0.390..  Test Accuracy: 0.882
Epoch: 27/30..  Training Loss: 0.194..  Test Loss: 0.405..  Test Accuracy: 0.878
Epoch: 28/30..  Training Loss: 0.195..  Test Loss: 0.415..  Test Accuracy: 0.879
Epoch: 29/30..  Training Loss: 0.193..  Test Loss: 0.418..  Test Accuracy: 0.883
Epoch: 30/30..  Training Loss: 0.187..  Test Loss: 0.412..  Test Accuracy: 0.879

6. loss 확인해보기

%matplotlib inline
%config InlineBackend.figure_format='retina'

import matplotlib.pyplot as plt

plt.plot(train_losses, label='training loss')
plt.plot(test_losses, label='Validation loss')
plt.legend(frameon=False)

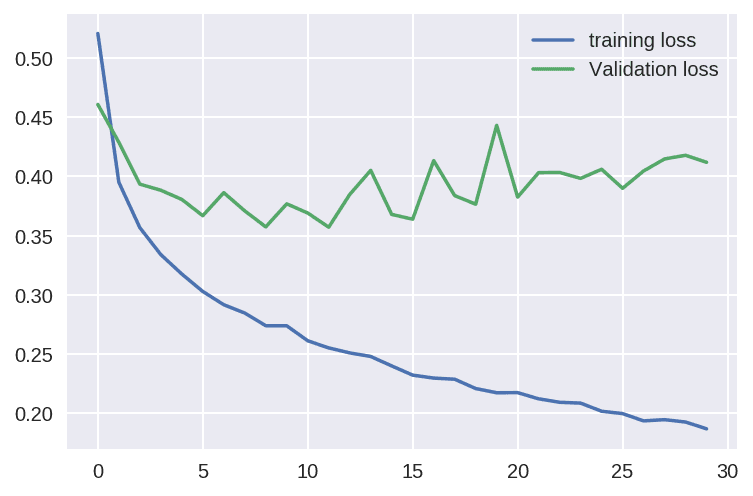

image-3

training loss는 점차 감소하지만, validation loss는 널뛰기 하고 있다. 이 말인 즉슨, 현재 overfitting 현상이 일어나고 있는 것이다.

7. dropout

드롭아웃은 Overfitting을 방지하기 위한 방법이다.

drop-out

일부 노드들을 훈련에 참여시키지 않고 몇개의 노드를 끊어서, 남은 노드들을 통해서만 훈련시키는 방식이다. 이 때 끊어버리는 노드는 랜덤으로 선택한다. pytorch에서는 기본값이 0.5 다. 즉 절반의 노드를 dropout하고 계산한다. 이렇게 함으로써, training하는 과정에서 Overfitting이 발생하지 않게 할 수 있다.

class Classifier(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(784, 256)
        self.fc2 = nn.Linear(256, 128)
        self.fc3 = nn.Linear(128, 64)
        self.fc4 = nn.Linear(64, 10)

        # 0.2정도를 무작위로 골라 dropout한다.
        self.dropout = nn.Dropout(p=0.2)

    def forward(self, x):
        x = x.view(x.shape[0], -1)

        x = self.dropout(F.relu(self.fc1(x)))
        x = self.dropout(F.relu(self.fc2(x)))
        x = self.dropout(F.relu(self.fc3(x)))

        # output은 dropout하면 안된다..
        x = F.log_softmax(self.fc4(x), dim=1)

        return x

dropout은 주의해야할 것이, training 과정에서만 이루어져야 한다는 것이다.

model = Classifier()
criterion = nn.NLLLoss()
optimizer = optim.Adam(model.parameters(), lr=0.003)

epochs = 30
steps = 0

train_losses, test_losses = [], []
for e in range(epochs):
    running_loss = 0
    for images, labels in trainloader:

        optimizer.zero_grad()

        log_ps = model(images)
        loss = criterion(log_ps, labels)
        loss.backward()
        optimizer.step()

        running_loss += loss.item()

    else:
        test_loss = 0
        accuracy = 0

        with torch.no_grad():
            # test 과정에 들어간다. dropout을 안하게 된다.
            # 정확하게 말하면, dropout 하는 비율이 0이 된다.
            model.eval()
            for images, labels in testloader:
                log_ps = model(images)
                test_loss += criterion(log_ps, labels)

                ps = torch.exp(log_ps)
                top_p, top_class = ps.topk(1, dim=1)
                equals = top_class == labels.view(*top_class.shape)
                accuracy += torch.mean(equals.type(torch.FloatTensor))

        # 다시 트레이닝 과정으로 돌아간다.
        model.train()

        train_losses.append(running_loss/len(trainloader))
        test_losses.append(test_loss/len(testloader))

        print("Epoch: {}/{}.. ".format(e+1, epochs),
              "Training Loss: {:.3f}.. ".format(train_losses[-1]),
              "Test Loss: {:.3f}.. ".format(test_losses[-1]),
              "Test Accuracy: {:.3f}".format(accuracy/len(testloader)))
Epoch: 1/30..  Training Loss: 0.602..  Test Loss: 0.508..  Test Accuracy: 0.818
Epoch: 2/30..  Training Loss: 0.482..  Test Loss: 0.454..  Test Accuracy: 0.835
Epoch: 3/30..  Training Loss: 0.450..  Test Loss: 0.429..  Test Accuracy: 0.848
Epoch: 4/30..  Training Loss: 0.434..  Test Loss: 0.418..  Test Accuracy: 0.851
Epoch: 5/30..  Training Loss: 0.416..  Test Loss: 0.431..  Test Accuracy: 0.852
Epoch: 6/30..  Training Loss: 0.413..  Test Loss: 0.399..  Test Accuracy: 0.855
Epoch: 7/30..  Training Loss: 0.405..  Test Loss: 0.394..  Test Accuracy: 0.856
Epoch: 8/30..  Training Loss: 0.397..  Test Loss: 0.386..  Test Accuracy: 0.858
Epoch: 9/30..  Training Loss: 0.392..  Test Loss: 0.412..  Test Accuracy: 0.855
Epoch: 10/30..  Training Loss: 0.388..  Test Loss: 0.380..  Test Accuracy: 0.865
Epoch: 11/30..  Training Loss: 0.383..  Test Loss: 0.376..  Test Accuracy: 0.865
Epoch: 12/30..  Training Loss: 0.375..  Test Loss: 0.392..  Test Accuracy: 0.863
Epoch: 13/30..  Training Loss: 0.380..  Test Loss: 0.382..  Test Accuracy: 0.863
Epoch: 14/30..  Training Loss: 0.374..  Test Loss: 0.370..  Test Accuracy: 0.876
Epoch: 15/30..  Training Loss: 0.368..  Test Loss: 0.385..  Test Accuracy: 0.864
Epoch: 16/30..  Training Loss: 0.371..  Test Loss: 0.371..  Test Accuracy: 0.871
Epoch: 17/30..  Training Loss: 0.358..  Test Loss: 0.392..  Test Accuracy: 0.861
Epoch: 18/30..  Training Loss: 0.354..  Test Loss: 0.371..  Test Accuracy: 0.872
Epoch: 19/30..  Training Loss: 0.354..  Test Loss: 0.373..  Test Accuracy: 0.873
Epoch: 20/30..  Training Loss: 0.353..  Test Loss: 0.386..  Test Accuracy: 0.867
Epoch: 21/30..  Training Loss: 0.361..  Test Loss: 0.388..  Test Accuracy: 0.867
Epoch: 22/30..  Training Loss: 0.350..  Test Loss: 0.385..  Test Accuracy: 0.869
Epoch: 23/30..  Training Loss: 0.353..  Test Loss: 0.371..  Test Accuracy: 0.869
Epoch: 24/30..  Training Loss: 0.343..  Test Loss: 0.368..  Test Accuracy: 0.872
Epoch: 25/30..  Training Loss: 0.351..  Test Loss: 0.378..  Test Accuracy: 0.875
Epoch: 26/30..  Training Loss: 0.339..  Test Loss: 0.371..  Test Accuracy: 0.872
Epoch: 27/30..  Training Loss: 0.351..  Test Loss: 0.372..  Test Accuracy: 0.875
Epoch: 28/30..  Training Loss: 0.350..  Test Loss: 0.375..  Test Accuracy: 0.871
Epoch: 29/30..  Training Loss: 0.353..  Test Loss: 0.391..  Test Accuracy: 0.875
Epoch: 30/30..  Training Loss: 0.340..  Test Loss: 0.385..  Test Accuracy: 0.876

다시 결과를 보자.

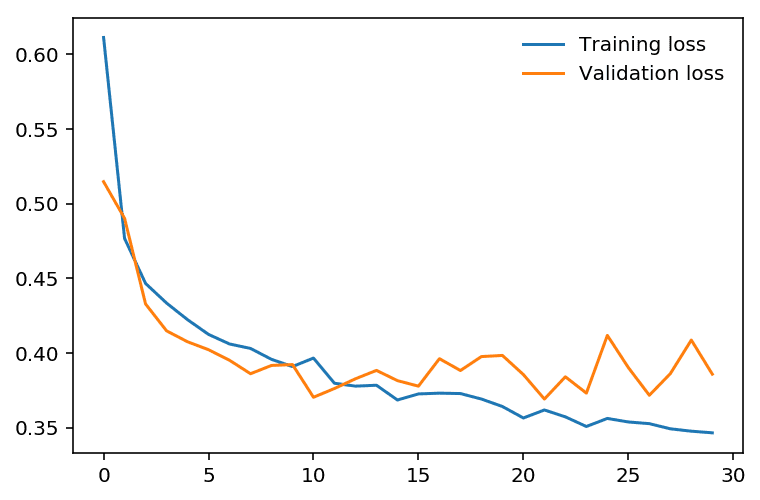

plt.plot(train_losses, label='Training loss')
plt.plot(test_losses, label='Validation loss')
plt.legend(frameon=False)
image-4

dropout이 overfitting을 방지해 주는 것을 알 수 있다.
